Suspension

Rear Sway Bar Removal and Installation

CG Sourced from Clark's Garage Beginner SUSP-05

CG

This guide is preserved from Clark's Garage, a foundational 944 resource. View the original →

Tools you'll need

Various Torque Wrench — 10–130 Nm

See the full tools list for where to buy each one and budget alternatives.

Tools

Metric Socket / Wrench Set
Floor Jack / Jack Stands

Procedure

Raise the vehicle on jack stands.
Removing the rear wheels makes the job a bit easier but is not required.

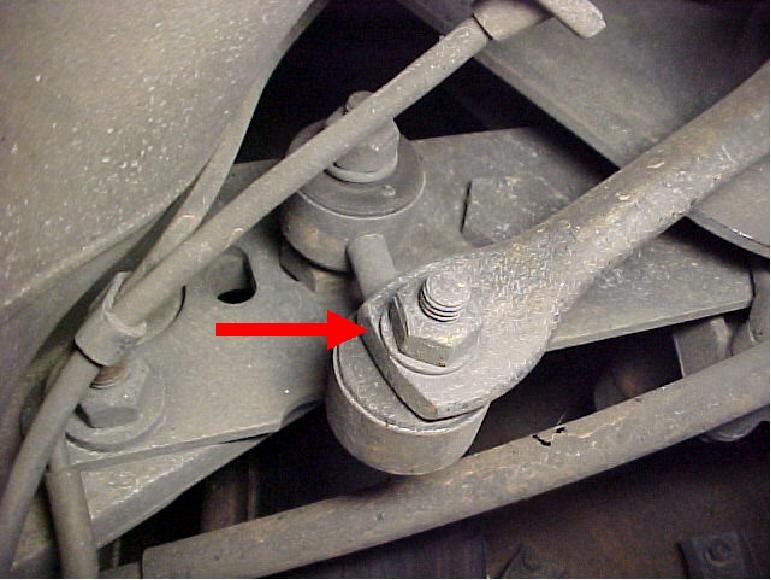

Remove the two bolts/nuts on either end of the sway bar that attach the sway bar to the drop links.

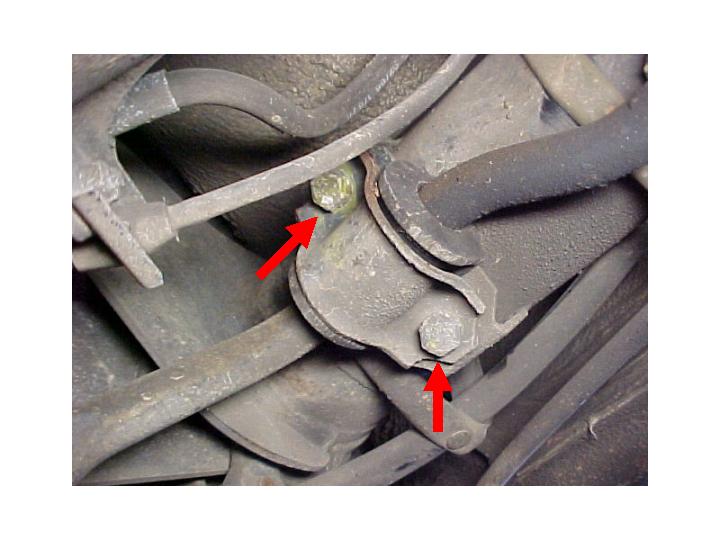

Remove the bolts (4 - 2 on each side) that hold the sway bar to the torque tube carrier and remove the sway bar from the vehicle.
Installation is the reverse of removal.
