Cooling System
Normally Aspirated 944 Cooling System
CG
This guide is preserved from Clark's Garage, a foundational 944 resource. View the original →
Tools you'll need
See the full tools list for where to buy each one and budget alternatives.

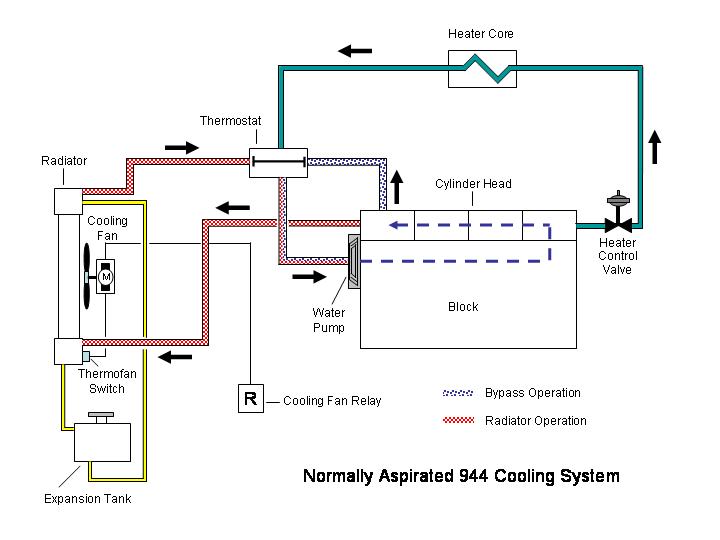

The normally aspirated 944 cooling system operates bypassing the radiator until the coolant temperature reaches 83 °C when the thermostat opens. After the thermostat opens, coolant is circulated through the radiator and back to the suction of the water pump.
Flow through the heater core is controlled by a vacuum operated diaphragm valve the fail open on loss of vacuum. Vacuum is supplied to the valve operator via a vacuum solenoid in the HVAC system.
