Introduction
This document contains information from Porsche Technical Bulletin 8813 dated June 10, 1988.
Information

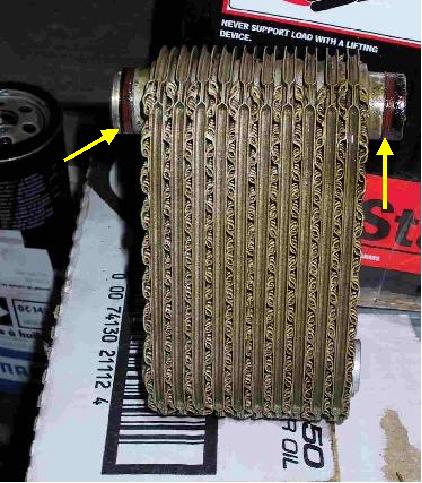

The o-rings used on both nozzles (see picture below) of the normally aspirated car oil cooler AND on the connection pipe of the turbo charged car oil thermostat / filter housing (one o-ring) were replaced by a new style o-ring in 1988. The new style o-rings are green in color while the old style o-rings are red.
When replacing oil cooler seals, only the new version o-rings should be installed. The part number for the new style o-rings is 999 707 043 40.
The new version o-rings were installed from the following engine numbers:
| New Style O-Ring Installations | |
| Engine Number | Vehicle |
| 46 J 06772 | 924S, 944 Manual Transmission |
| 46 J 61599 | 924S, 944 Auto Transmission |
| 42 J 01420 | 944S |
| 45 J 01753 | 944 Turbo |
| 47 J 00899 | 944 Turbo S |
