DME Wiring Diagram - 944 Turbo
CG
This guide is preserved from Clark's Garage, a foundational 944 resource. View the original →
Tools you'll need
- VAG 1669 / KTS 500 DME Diagnostic Adapter
- Durametric / Foxwell NT630+ Durametric Diagnostic Software
- Fluke 117 / Klein MM400 Digital Multimeter (4000+ count)
See the full tools list for where to buy each one and budget alternatives.
General

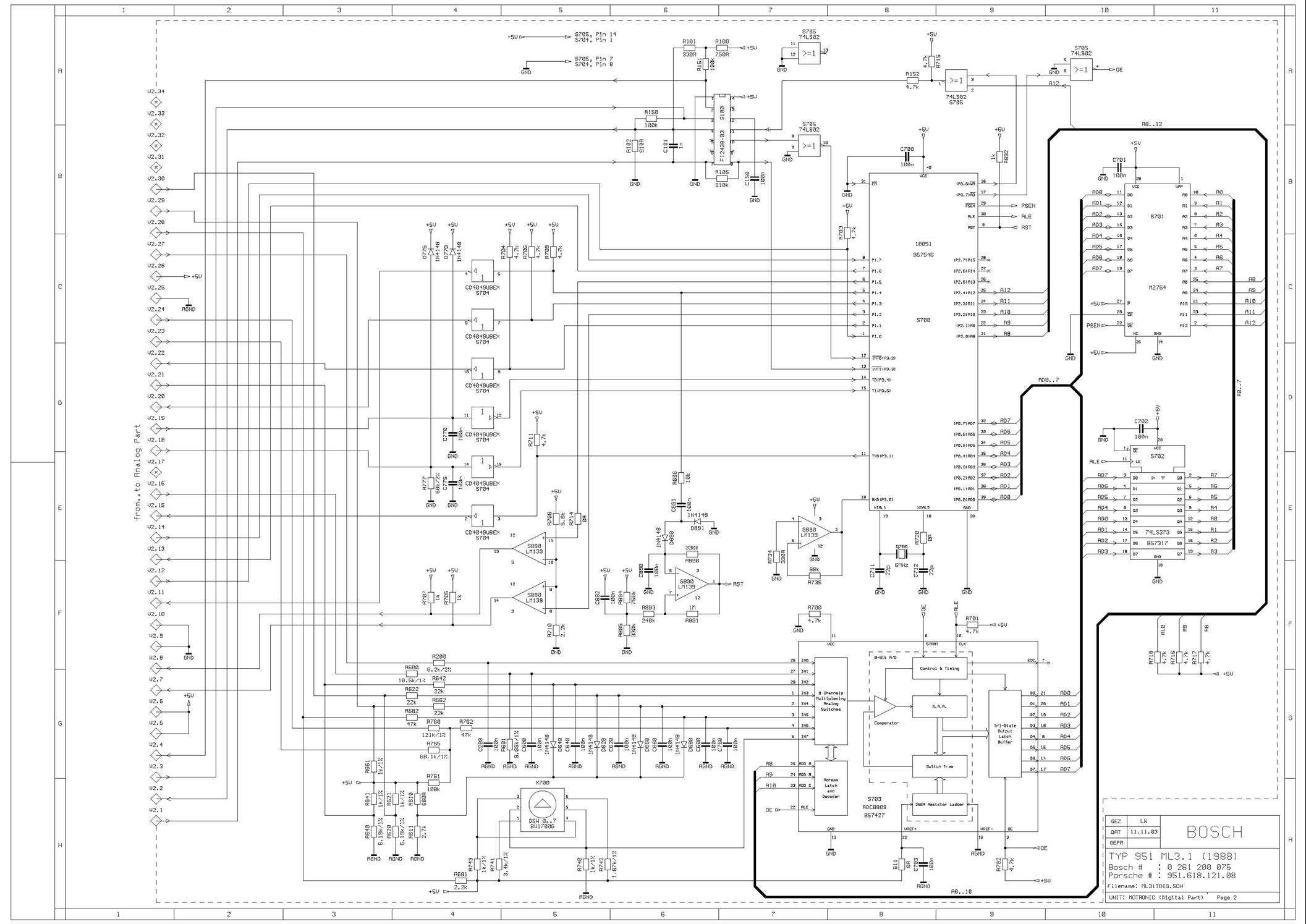

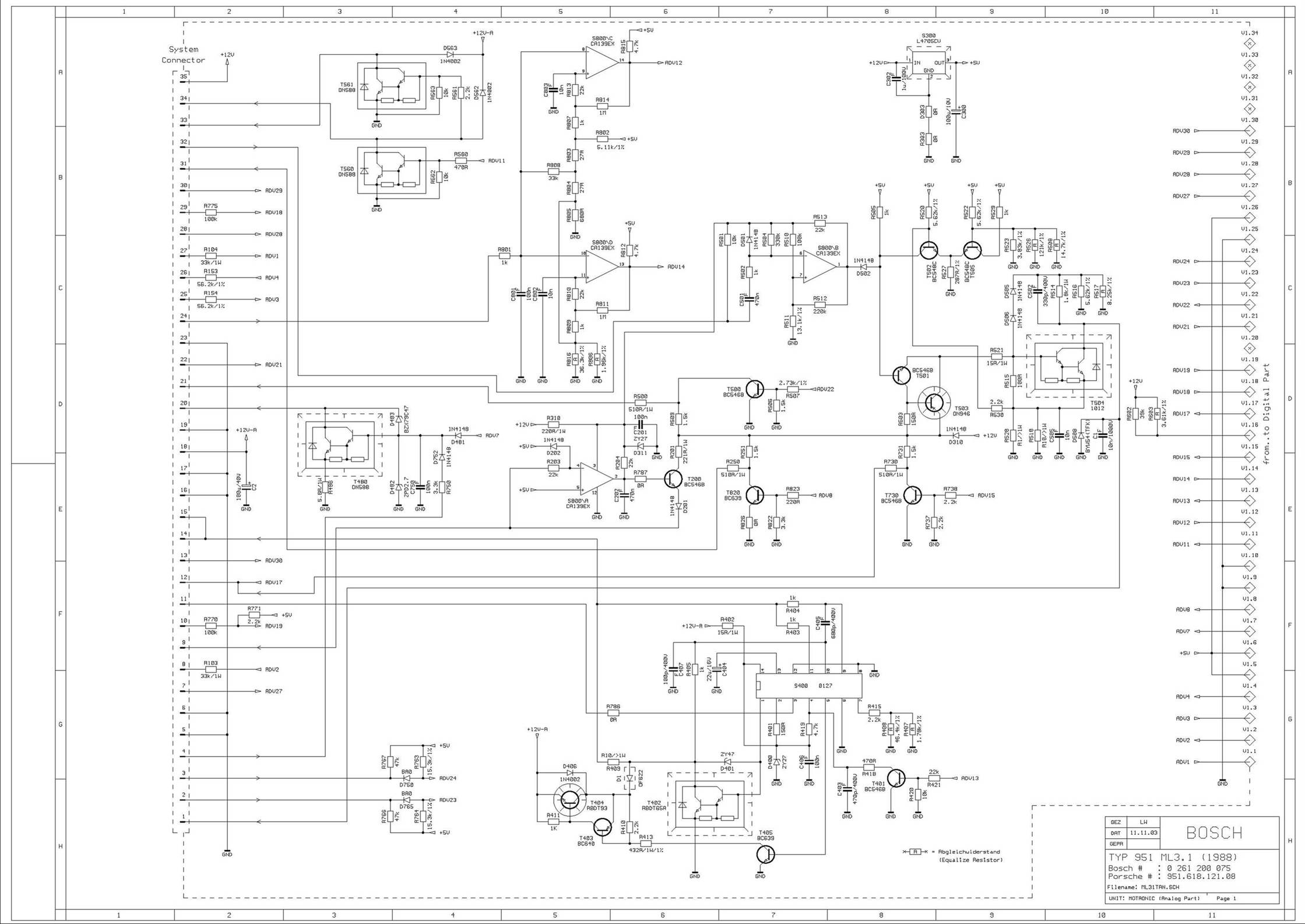

The following are wiring diagrams for the 944 Turbo DME. Currently, wiring diagrams for the KLR are not available. When they become available, I’ll post them in the Shop Manual.
